Steeda Mustang Rear IRS Subframe Support Braces (2015-2024)
With the release of the S550 Mustang in 2015 Steeda knew that addressing the IRS system would be a top priority. Being the first production Mustang with an IRS since the 03/04 Cobra's, we knew there would be a great opportunity to capitalise on Ford's new piece by giving it the Steeda advantage. As with any suspension system, deflection is an issue if it's present. Anytime a piece is moving, twisting or vibrating when it should be stationary is a major problem. One of the areas team Steeda wanted to focus on was the rear IRS sub frame.
As you have seen with our IRS Sub frame Bushing Support System, it limits the movement of the sub frame by filling in the voids of the OE bushings. With Steeda's IRS Sub frame Support Braces, we have taken the S550 and S650 Mustang rear suspension to another level!

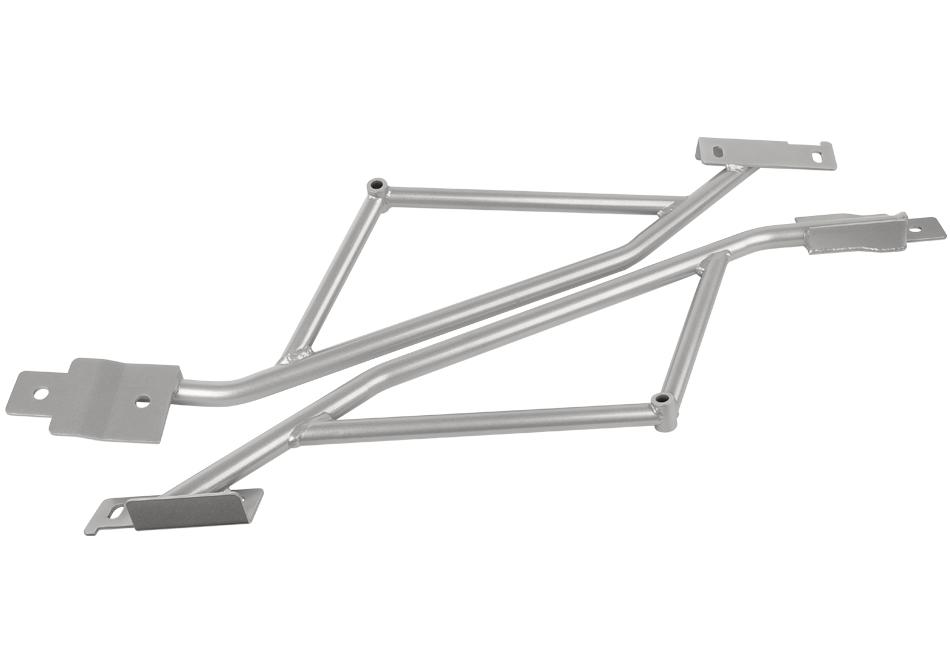

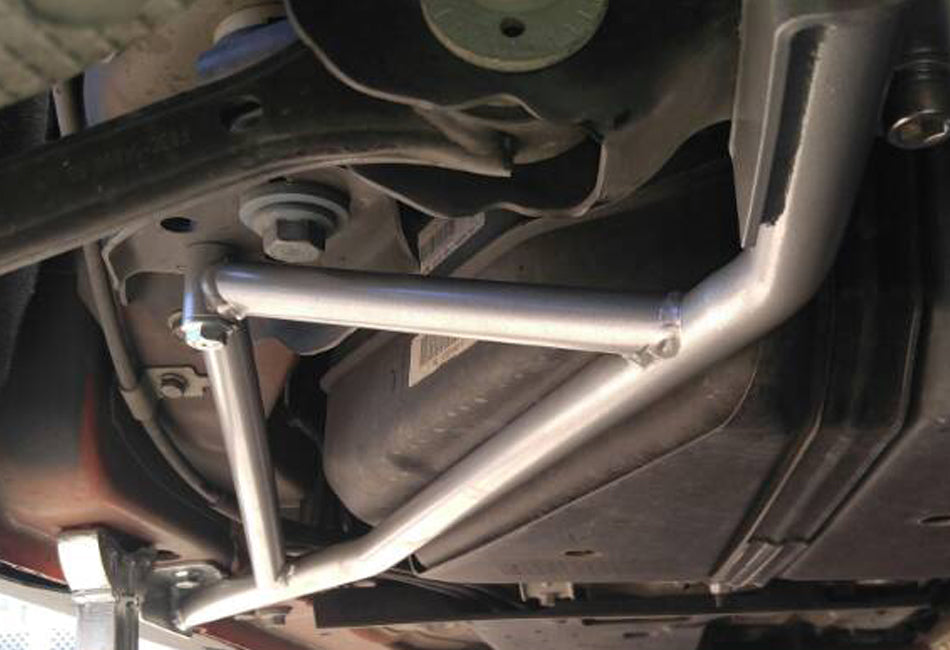

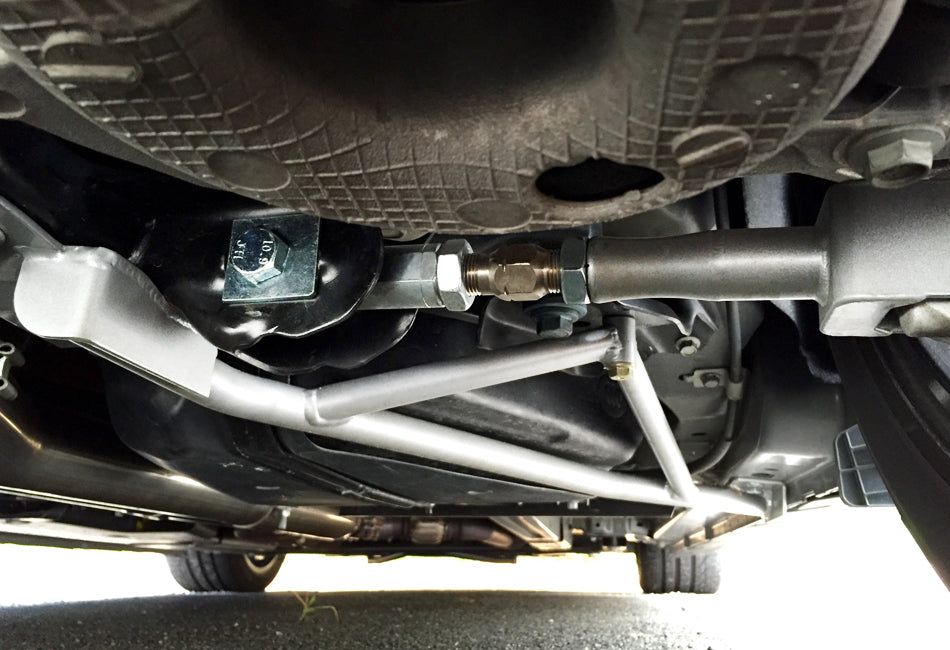

Our Steeda S550 & S650 Mustang Rear IRS Sub frame Braces for 2015+ Mustang GT, Bullitt, Mach 1, Dark Horse and EcoBoost (non-convertible) is built in-house from 4130 chrome moly steel and powder coated silver metal flake, this part isn't only strong - it also looks great under your new Mustang! What we did was tie together 3 very important points on the S550 and S650 chassis. We utilised existing threaded holes in the rocker panel (the strongest part of the body) and connected that to the front mounting location of the IRS sub frame and the rear mount of the lower control arm and toe link. Connecting these 3 points together not only adds rigidity that was lacking in the rear, but also more control of the whole car.
Also, unlike competitors kits that only replace the factory bracket, our Steeda kit supports that bracket while connecting to 2 additional locations, therefore providing twice the support! Best part about this kit is it uses all existing holes in the chassis so the car doesn't have to be modified in any way and adds no NVH whatsoever.
Product Benefits
- Better handling for more stable cornering
- Limits IRS sub frame movement
- No permanent modifications necessary
- No added NVH
- 50% more connecting points
- Reduces wheel hop
- Fully compatible with Steeda's popular Jacking Rails
- Standard Fitment on Steeda Q-Series Mustangs
- Homologated / Certified for European use
- Lifetime warranty
- Normally in stock
Fitment:
S550 Mustang: V8 & Ecoboost, COUPE ONLY Manual and automatic, 2015-2023
S650 Mustang: V8 & Ecoboost, COUPE ONLY Manual and automatic, 2024+
Not For Convertibles
Convertible Mustangs already come with a similar brace from the factory, so this part from Steeda is not required.
